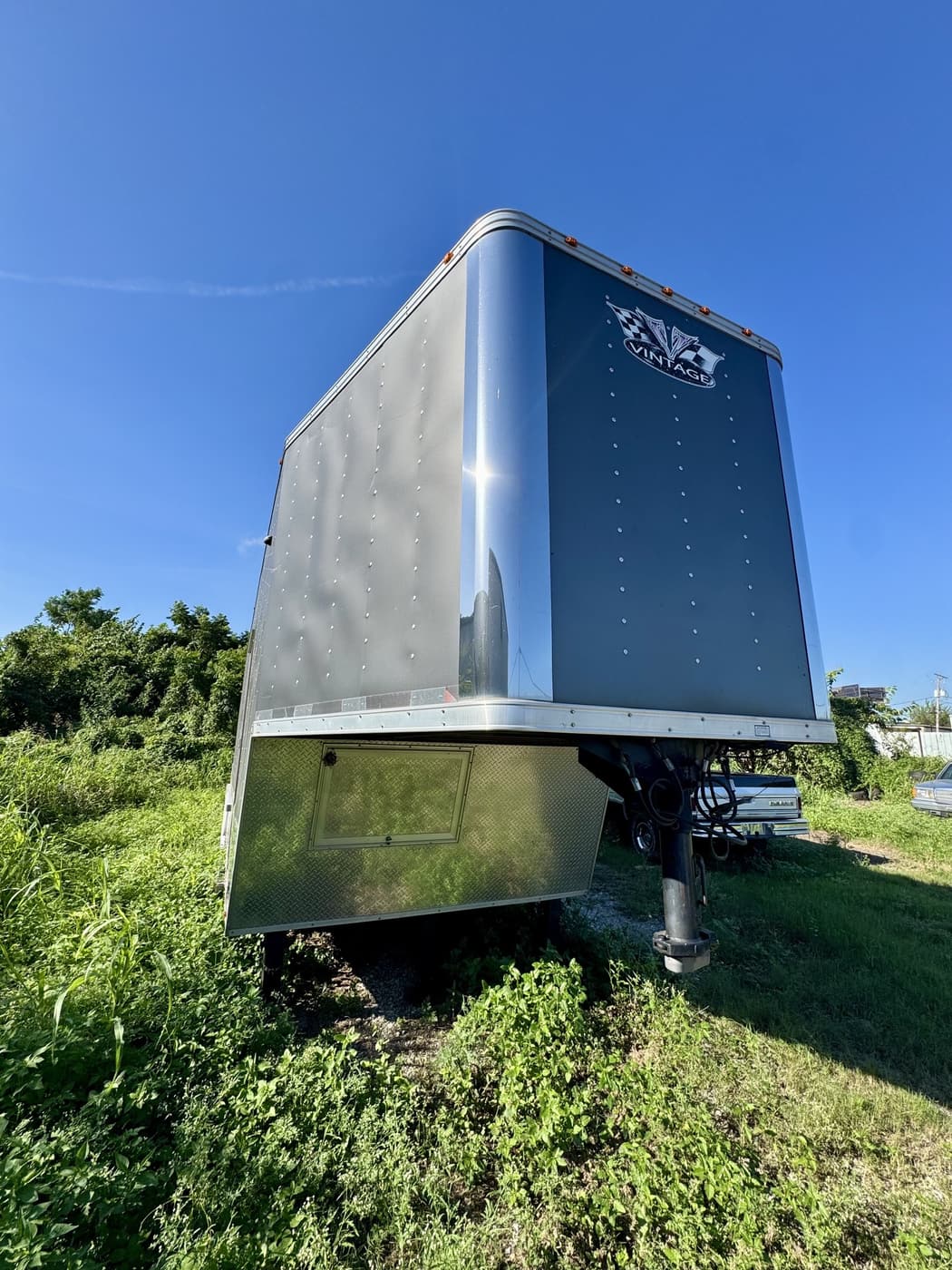

Used 2017 Vintage Trailers Outlaw 34 ft Aluminum Gooseneck Crane Mobile Base Trailer

Equipment specification

Category

Grip, electric and camera trucks

Make

Vintage Trailers

Year

2017

Model

Outlaw OL834GT37

Type

Crane mobile base trailer, enclosed gooseneck

Length

34 ft

Axles

3 x 7,000 lb

GVWR

21,000 lb

Title status

Clean

Condition and known issues

Condition (graded by the seller)

Good

Grade means

Working, visible wear from use.

Known issues

- One 14 in tear in a side panel, cosmetic, not structural, repaired. Photographed in the gallery. - Empty weight today has not been weighed; 7,206 lb is the factory ship weight. - Tire date codes and the axle brake tag have not been read yet.

Usage and service history

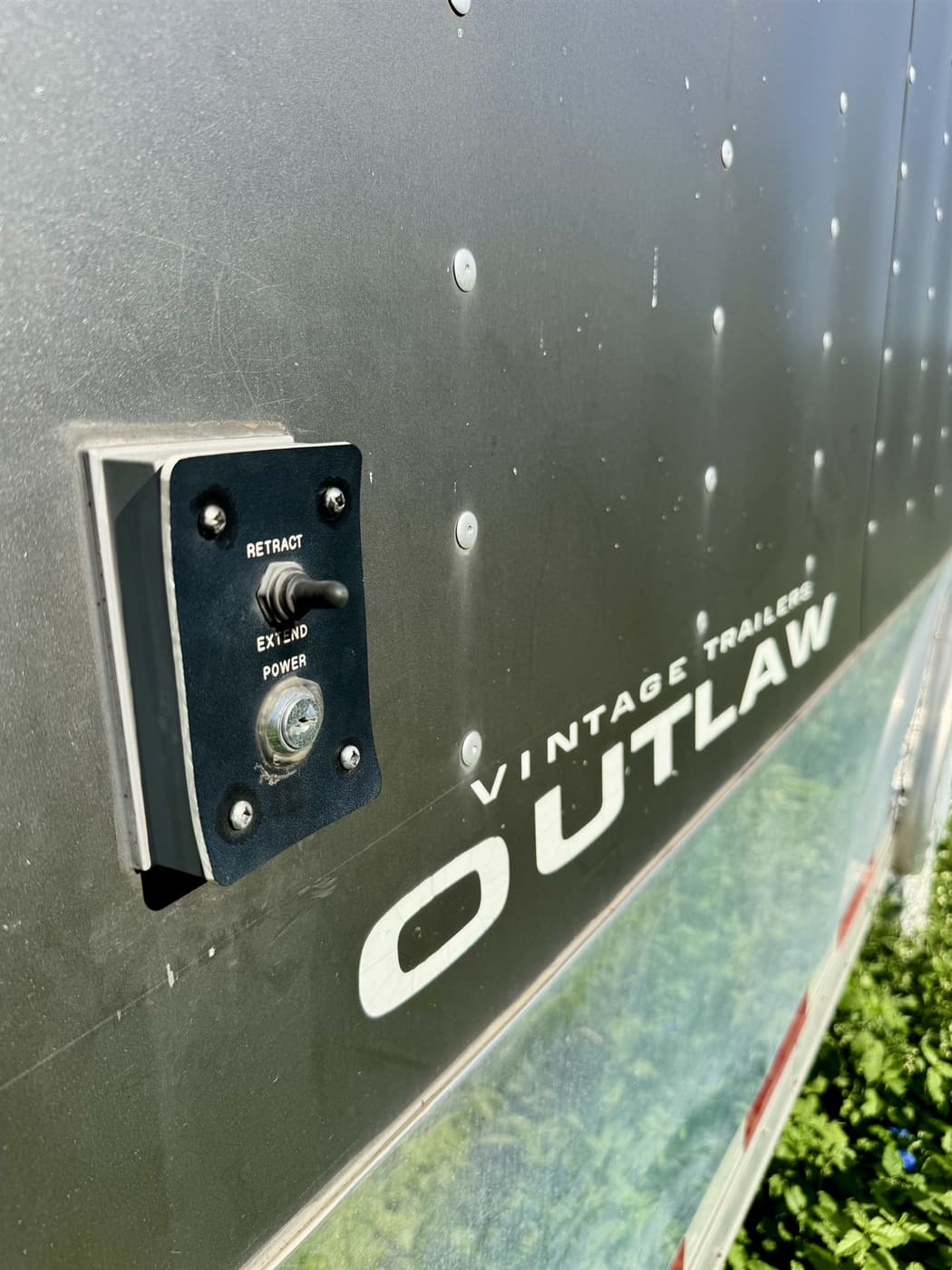

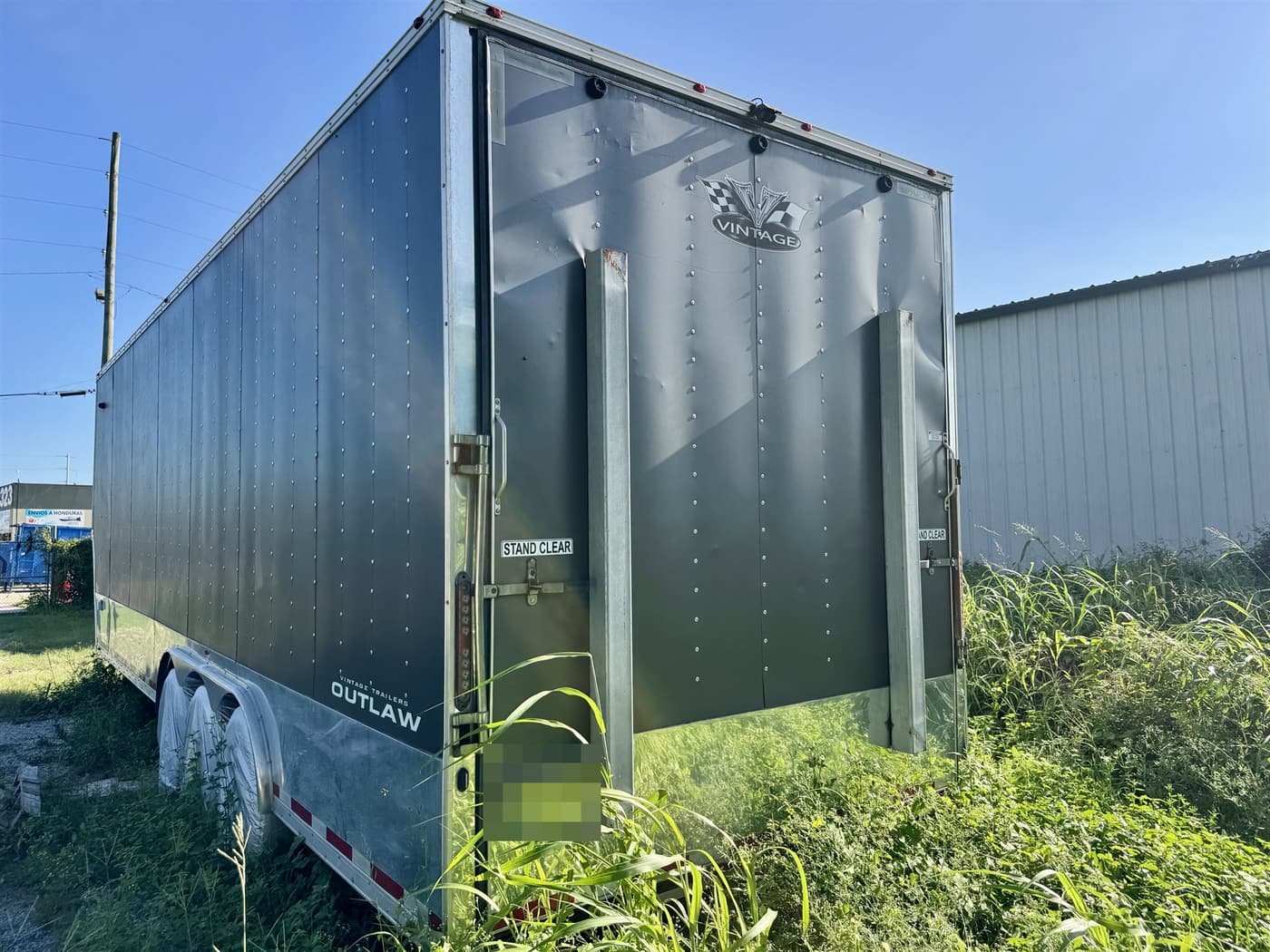

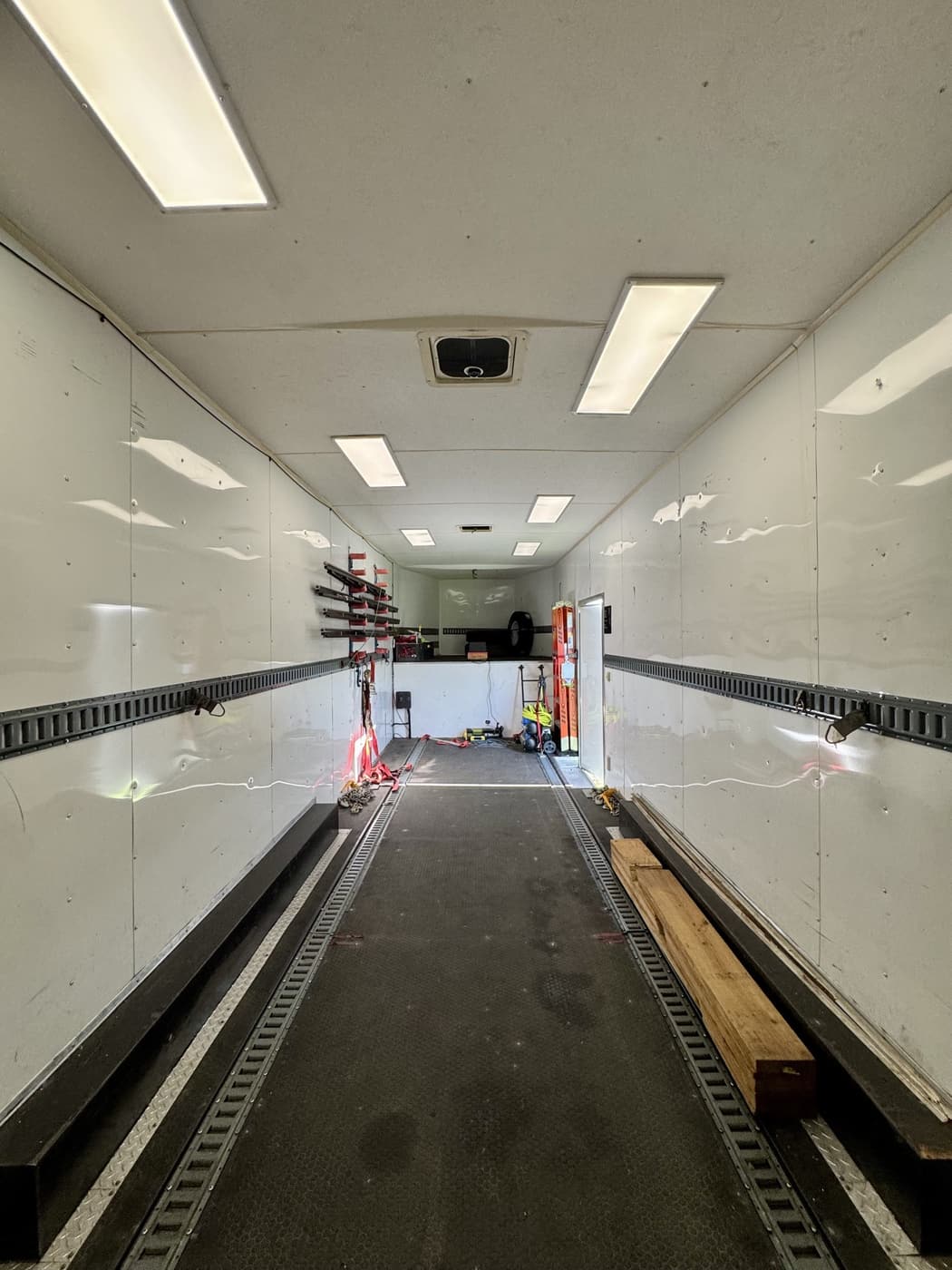

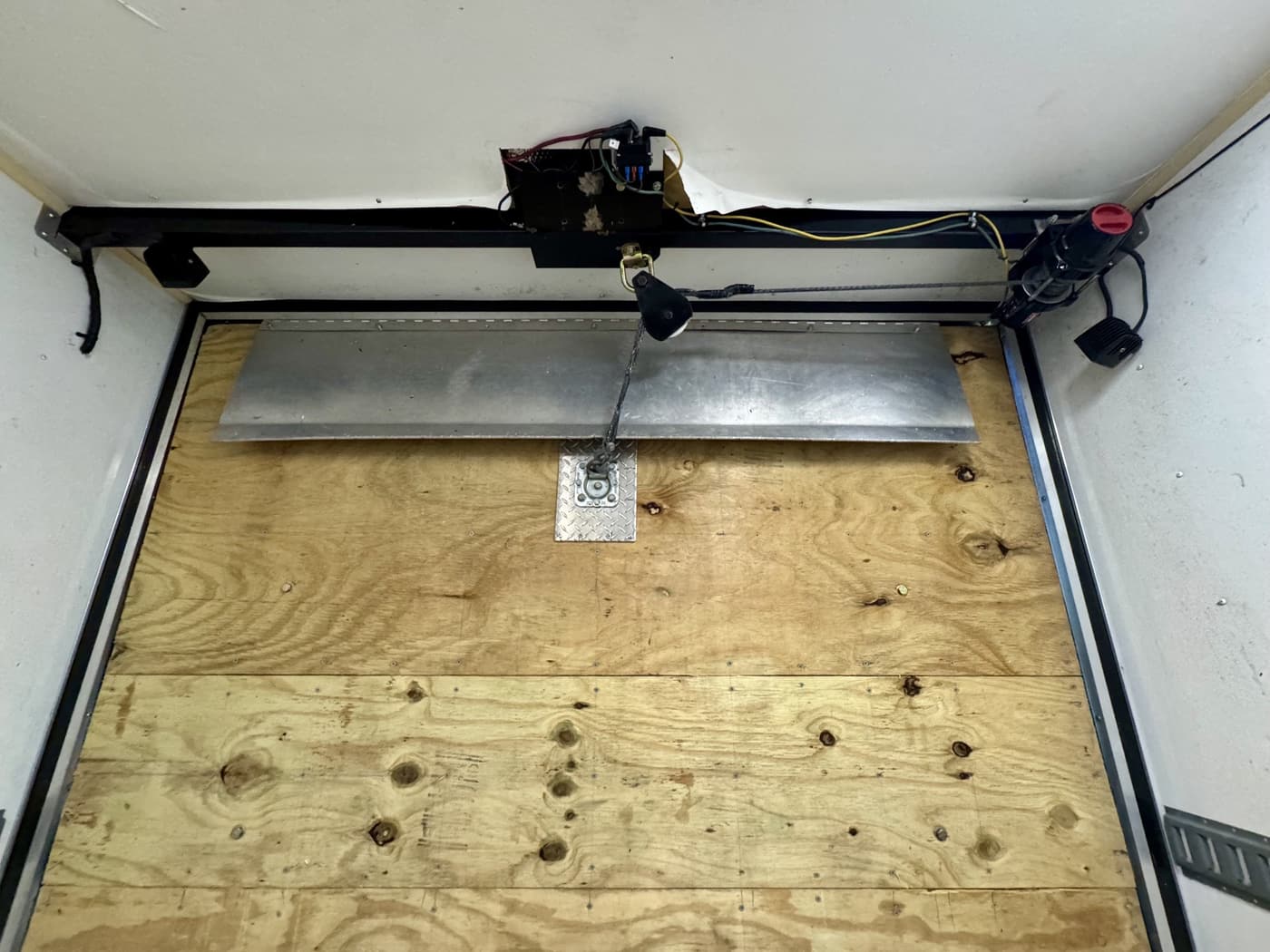

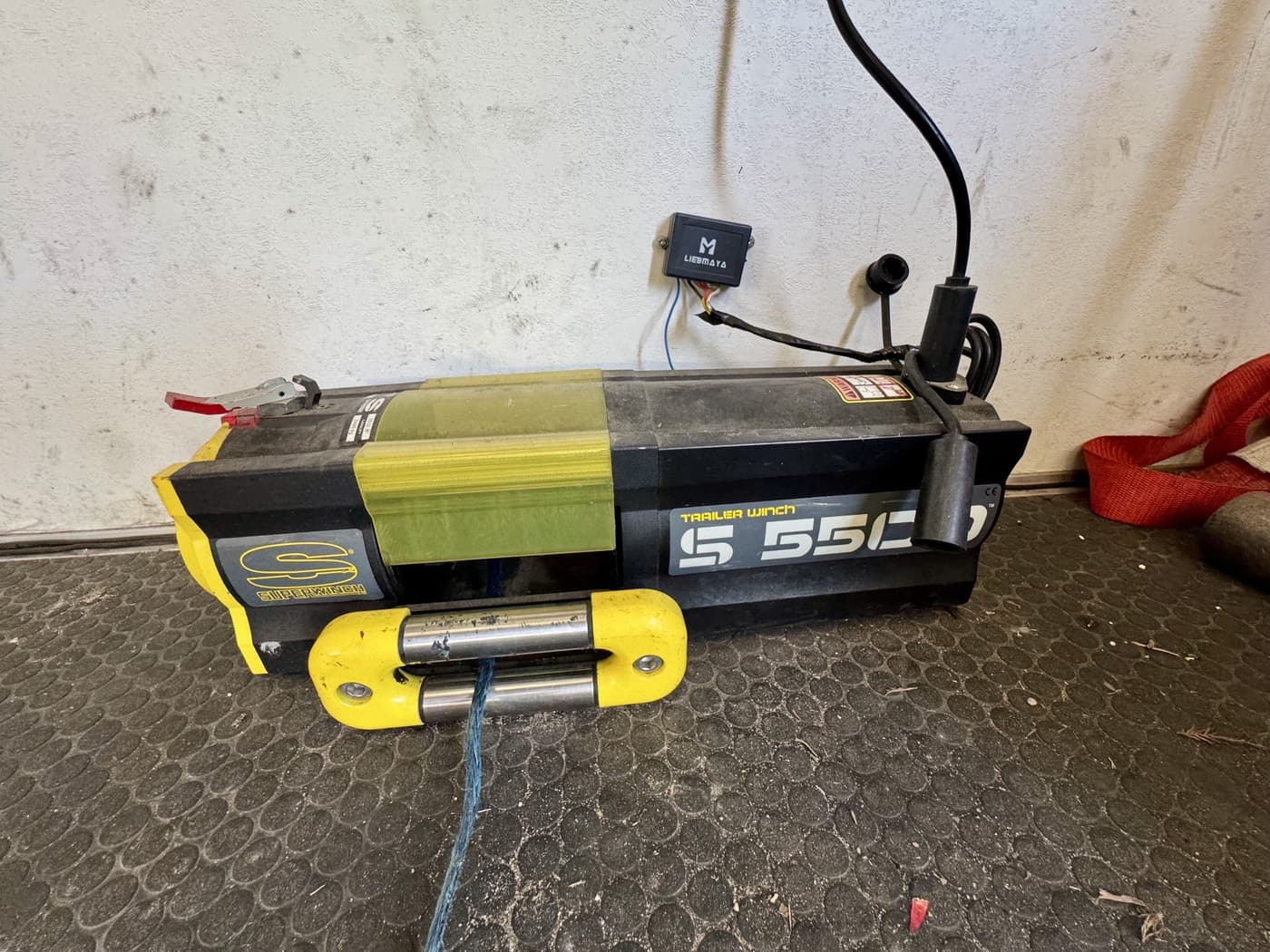

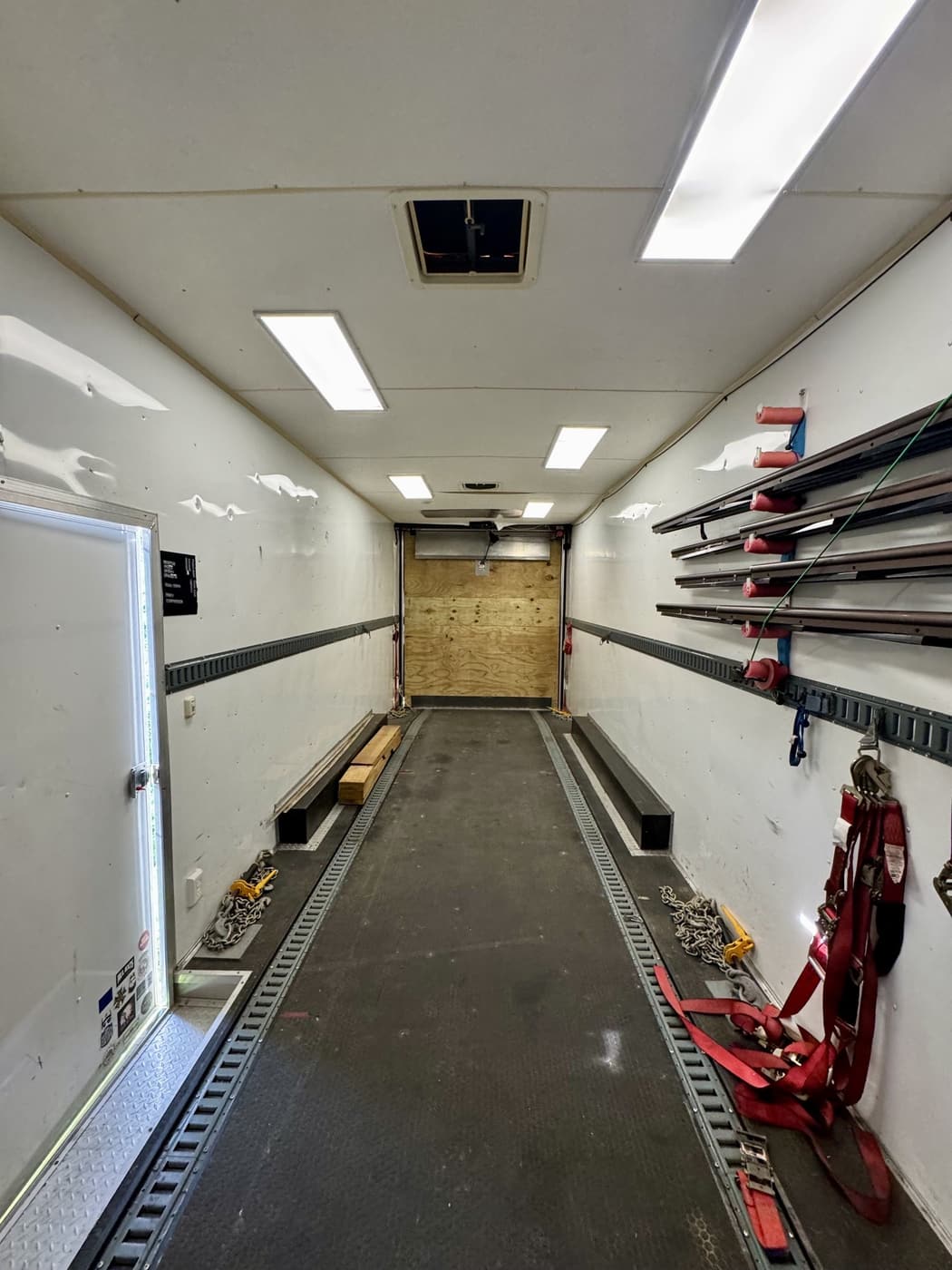

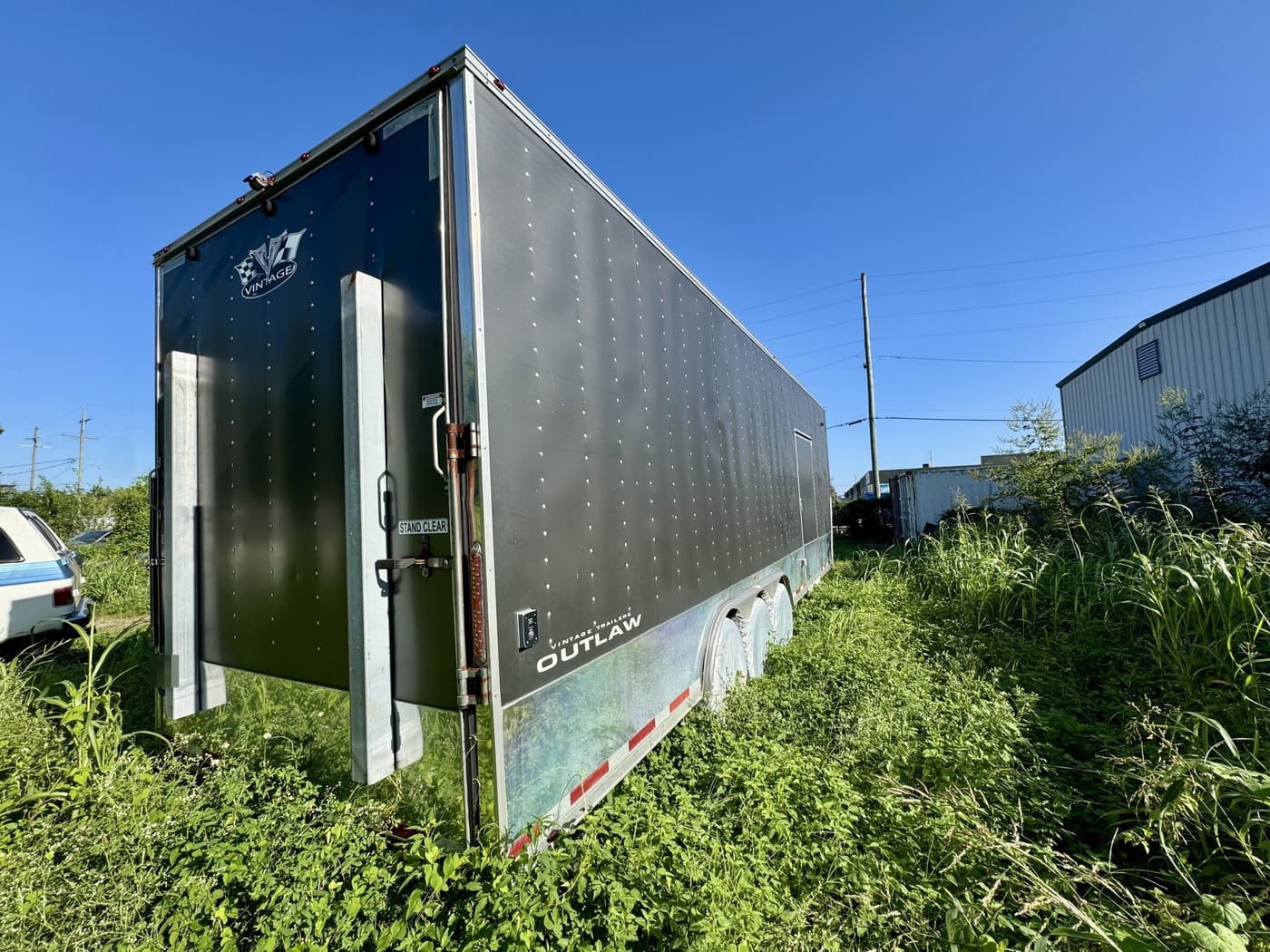

A one-owner 2017 Vintage Trailers Outlaw, ordered from the factory as a heavy-payload trailer and set up to carry motorized camera crane bases. The rear ramp door was built reinforced at the factory and reinforced again afterwards, so a motorized base drives straight in under its own power. Three 7,000 lb axles, 21,000 lb GVWR. The original factory build sheet comes with it. Bought new by its only owner and built to order: the factory build sheet shows the heavy-payload options, a production date of June 2017, and this trailer's VIN. It spent its working life in film production, hauling motorized camera crane bases a few times a month. Never raced, never on a construction site. It carried equipment where a failure on the road was not an option, and it was maintained that way. How it loads The ramp door was ordered as a reinforced heavy-duty unit and reinforced again in-house, which makes it too heavy to lift by hand, so a factory keyed hoist raises and lowers it. Two transition flaps cover the gap at the door and reach the ground for drive-on loading. Anything that will not drive itself all the way in comes in on the 5,500 lb front winch. Four corner tie-downs were added for securing a motorized crane base. The two 12V batteries stay topped up from the solar maintainer, so the gate and the jack have power when you arrive on location. Specs Year, make, model: 2017 Vintage Trailers Outlaw, model OL834GT37 Type: Crane mobile base trailer, enclosed gooseneck Width: 8.5 ft Height: 11 ft (24 in extra-height option) Overall with truck: About 52 ft Construction: All aluminum. .040 exterior, screwed and riveted; .030 white interior walls Colour: Medium charcoal grey Insulation: Ceiling and side walls Floor and walls: Crossmembers and wall posts on 12 in centers (16 in was standard on this model) Flooring: TPO coin, floor and ramp Axles: Three 7,000 lb Dexter torsion axles (upgraded from 5,200 lb at order) GVWR: 21,000 lb Factory ship weight: 7,206 lb Rear door: Reinforced heavy-duty ramp door, factory keyed hoist Front winch: 5,500 lb electric, wireless remote Side door: 48 in with flush lock (45-1/4 in opening), 6 in taller than standard, aluminum pull-out step Tie-down: Recessed floor E-track front to back; wall E-track both sides; E-track in the gooseneck storage area; four heavy-duty corner tie-downs Roof: Two vents, one pre-wired and framed for air conditioning Jack: Single-post hydraulic gooseneck jack with keyed control panel Batteries: Two 12V for the winches and jack, on a solar maintainer Nose: 5 ft tapered, 20 in beavertail skirt, heavy-duty skid wheels Title: Clean, in hand, no lien; registration current What's included - The trailer, with its wireless winch remote. - A copy of the original factory build sheet, owner details removed, for a serious buyer. Pickup and towing Pickup near New Orleans, Louisiana, with easy access for a long rig. The exact location is shared with a confirmed buyer. Viewing by appointment. No delivery: the buyer arranges transport, and the seller will help load. You need a one-ton dually with a gooseneck hitch and a brake controller. The VIN is shared privately once you're talking with the seller.

Pickup or delivery

Pickup only, in New Orleans, Louisiana. The seller shares the exact address in messages.
